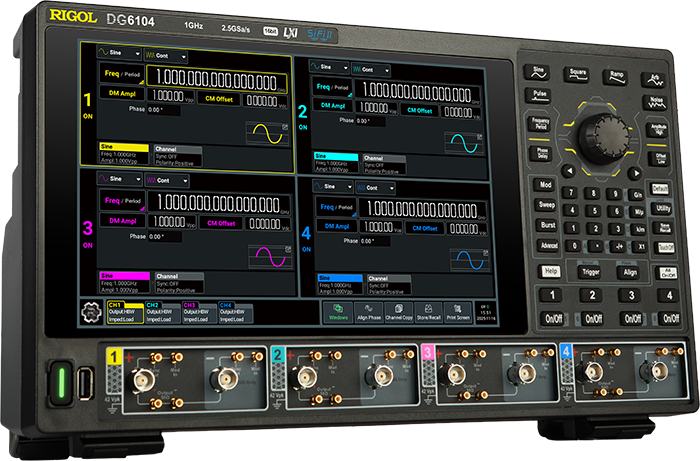

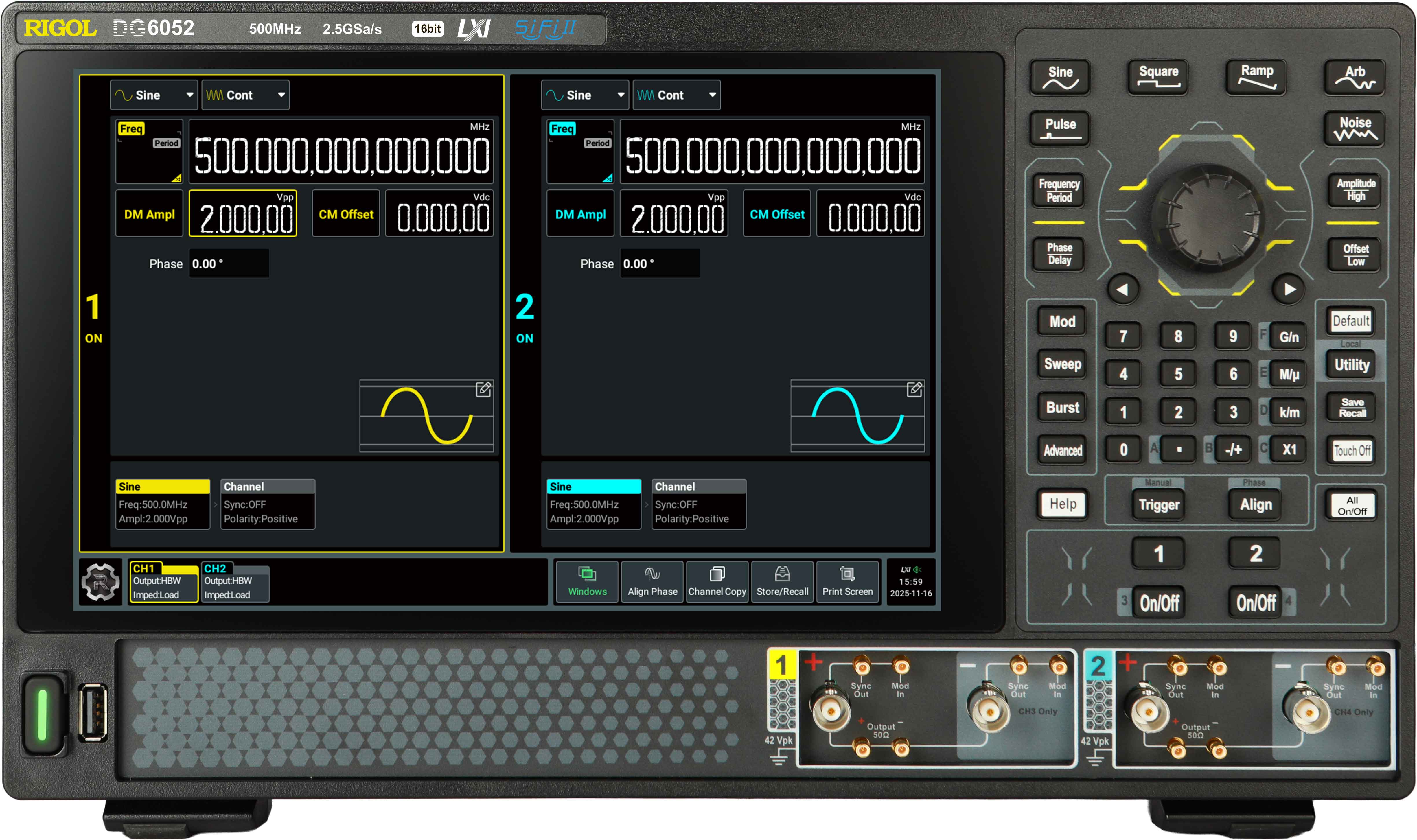

DG6000

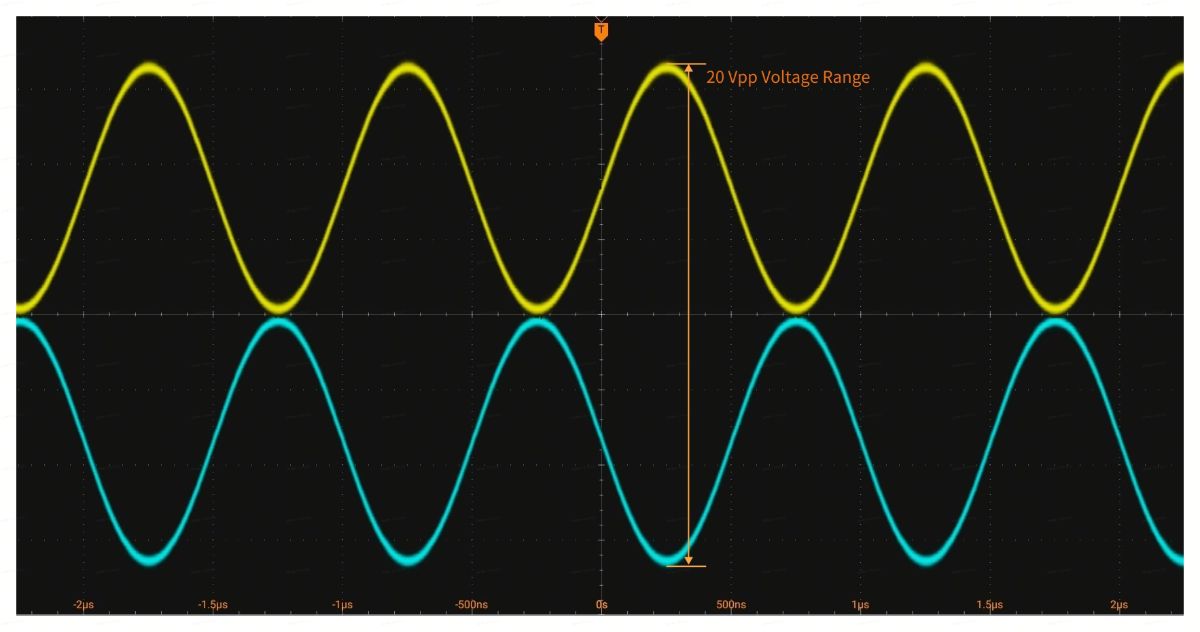

Breaking the limitations of traditional signal generators that require external baluns or amplifiers. All 4 channels of the DG6000 support differential output and offer switching between three modes: HBW (High Bandwidth), AMP (High Amplitude), and SND (Single-Ended) . In AMP mode, the instrument can directly output differential signals of up to 20 Vpp (100 Ω). You can directly drive the gates of SiC/GaN power devices or conduct high-voltage differential bus testing, resulting in a more streamlined signal chain and higher signal fidelity.

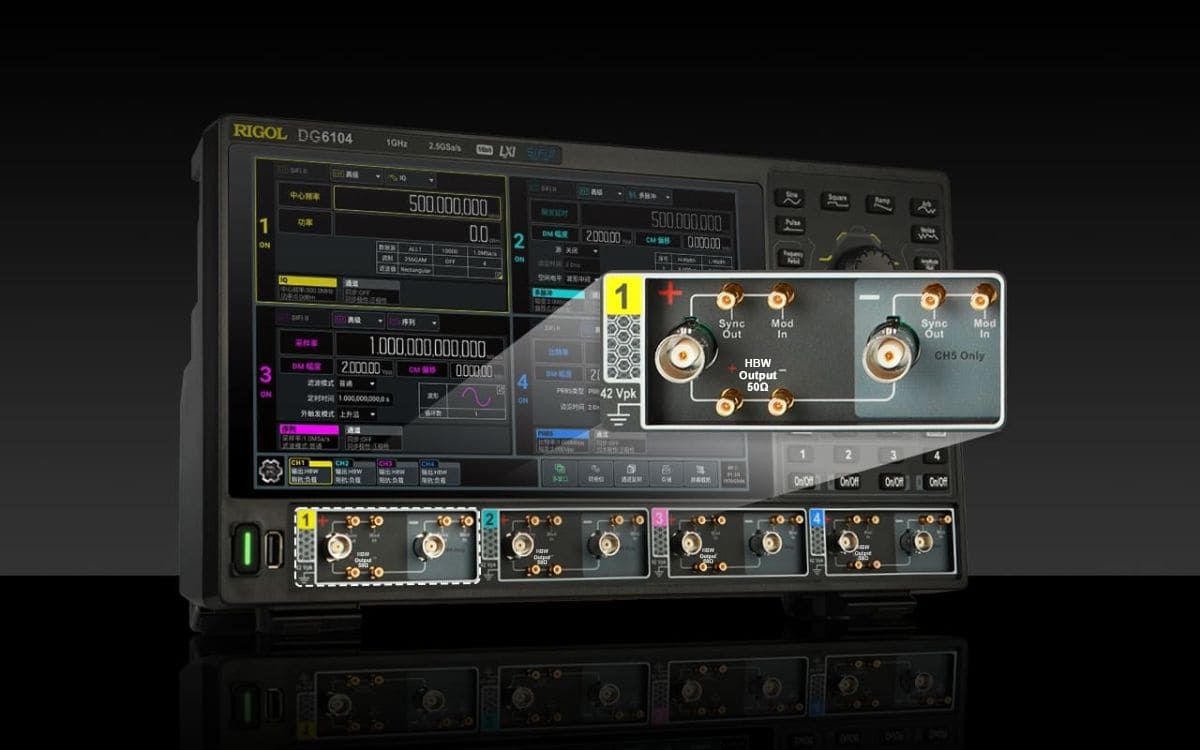

The DG6000 uses a fully electrically isolated design between channels, and each channel has an independent floating ground reference potential. Compared with instruments with traditional common ground design, this feature effectively cuts off the ground loop and eliminates the mutual crosstalk between channels. When conducting multi-channel parallel power supply tests, bioelectrical simulations, or industrial floating ground measurements, it not only has lower background noise but also prevents equipment damage caused by wiring errors.

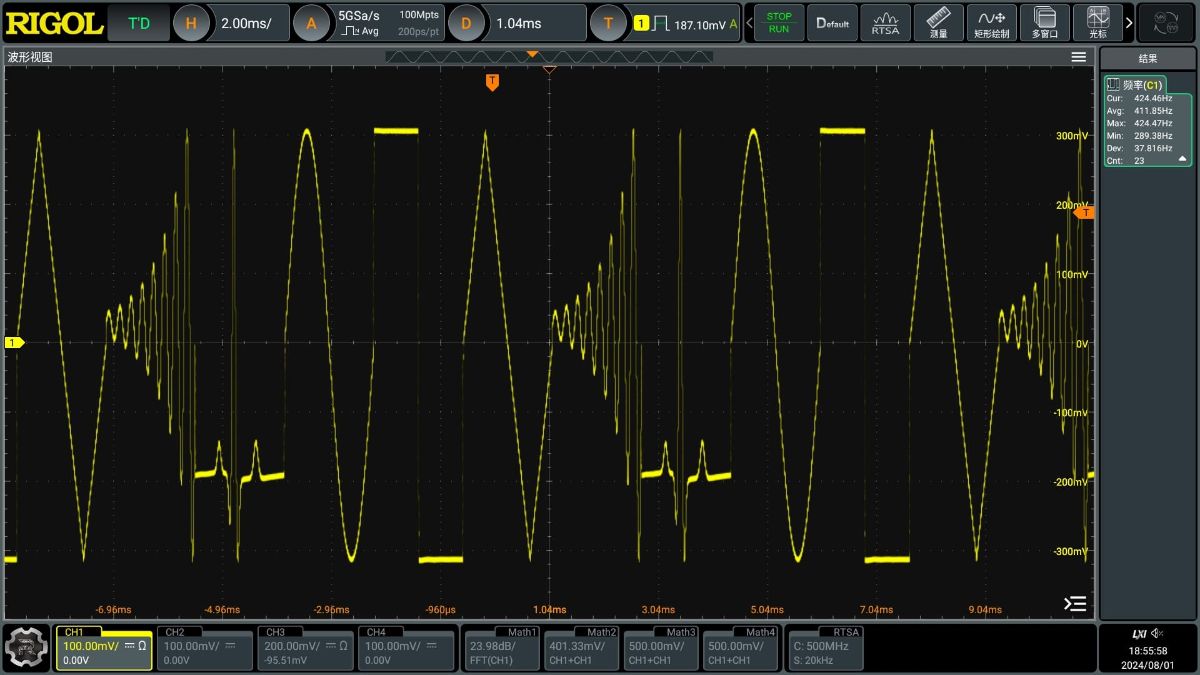

In radar, sonar, and complex environment simulations, the waveform length determines the authenticity of the simulation. The DG6000 can be optionally equipped with a maximum storage depth of 512 Mpts/CH.

This means that users can download and play long - period real sampling data or generate extremely long non - periodic sequences, completely saying goodbye to the "short waveform loop" that has to be done due to insufficient memory, and ensuring that the simulation scenario is consistent with the real environment.
