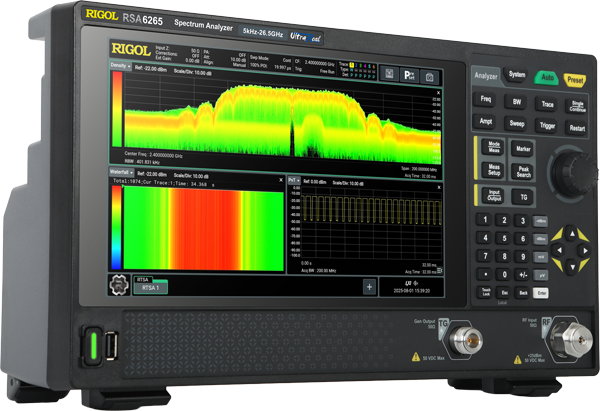

RSA6000
The RSA6000 Series Real-Time Spectrum Analyzers combine real-time analysis (RTSA) and swept spectrum analysis (GPSA), with optional application software including Vector Signal Analysis (VSA), Analog Demodulation (ADM), and EMI Measurement (EMI). They deliver outstanding performance and specifications.
Explore the RSA6000 Series Spectrum Analyzer
Class-leading 200MHz real-time spectrum analysis
Supports signal capture in complex environments, easily handles challenges such as multiple signals and instantaneous interference, quickly locks in abnormal signals, and improves the efficiency of R & D and troubleshooting.
Completely upgraded demodulation analysis bandwidth of 200MHz
200MHz vector demodulation bandwidth: Easily handle in-depth analysis and performance evaluation of various broadband communication signals.
Phase noise -108dBc/Hz@1GHz, 10kHz offset
Excellent phase noise performance provides a pure local oscillator for high-demand tests, ensuring accurate and reliable measurement results.
Compact size, portable design
The compact and portable body design can easily handle the crowded laboratory bench and complex outdoor environment, making high-performance testing feasible anywhere.
5-in-1 multi-function
One machine serves five purposes, highly integrating five core functions. It greatly saves testing space and investment costs, and comprehensively enhances the value of comprehensive testing.
Complete the pre-test of conduction/radiation through the built-in EMI test software.
The built-in EMI pre-test application software, combined with a filter that meets the CISPR standard, conducts pre-tests on the product's conduction and radiation to identify and improve the sources of conduction/radiation interference, thereby accelerating the product's market entry.
Provide multiple interfaces and support the standard SCPI instruction set
Integrate multiple remote interfaces such as USB, LAN, and HDMI, support standard SCPI commands, easily build an automated test system, and accelerate your product development process.
UI design that is more suitable for touch operations
The brand-new touch UI offers a smooth experience like that of a tablet, making complex spectrum measurements intuitive, efficient, and effortless.
RSA6000
Model |
Frequency |
Real-Time Bandwidth |
Tracking Generator |
EMI Pre-compliance |
Analog Demodulation |
Price |
|
|---|---|---|---|---|---|---|---|
| RSA6085 | 5 kHz ~ 8.5 GHz | 1 Hz~200 MHz | Yes | Option | Option | $12,799 |
|
| RSA6140 | 5 kHz ~ 14 GHz | 1 Hz~200 MHz | Yes | Option | Option | $21,699 |
|
| RSA6265 | 5 kHz ~ 26.5 GHz | 1 Hz~200 MHz | Yes | Option | Option | $25,499 |
|
ADM User Guide
|
|
EMI User Guide
|
|
RSA6000 Series Performance Verification
|
|
RSA6000 Series Quick Guide
|
|
RSA6000 Series User Guide
|
|
VSA User Guide
|
|
ADM ProgrammingGuide
|
|
EMI ProgrammingGuide
|
|
RSA6000 Series Programming Guide
|
|
VSA ProgrammingGuide
|
|
RSA6000 Series Data Sheet
|
| C#.NET basic instrument communication example | Here is a short example on using National Instrument VISA and C#.NET to communicate with an instrument. |
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
| How do I retrieve data using UltraSigma and a DSA? | You can easily collect live and stored traces and other types of data using UltraSigma.
Please see the attachment. |
| Rigol Software Installation and Usage guide | An overview of the installation and usage of the Ultra Family of software products from RIGOL |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
 S1210 EMI PreCompliance software | Download free trial of S1210 EMI software |
| UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
High Power Attenuator
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
ATT03301H
|
30dB High Power Attenuator, Max Power 100W |
$230
|
|
N Type Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-NM-NM-75-L-12G
|
N(M)-N(M) RF Cable |
$199
|
|
|
SMA Cable
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
CB-NM-SMAM-75-L-12G
|
N(M)-SMA(M) RF Cable |
$199
|
|
|
Utility Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
DSA Utility Kit
|
DSA Accessories Package including cables, adaptors, and antennas. |
$831
|
|
RF Attenuator Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RF Attenuator Kit
|
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) |
$524
|
|
RF CATV Kit
Model |
Description |
Price |
Downloads |
Action |
|---|---|---|---|---|
RF CATV Kit
|
Kit Includes 50 to 75 Ohm Adaptors (2pcs) |
$419
|
|
