RSA3000 Series   |

Real-Time Spectrum Analyzers

RSA3000
Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference. Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA3000 and RSA3000E Series combine High Performance swept analysis and Real-Time performance (9.3µs 100% POI) with specialized optional measurement modes for demanding analysis including EMI mode for EMI Pre-Compliance testing, ASK/FSK mode for demodulation analysis (RSA3000E), and AMK for Advanced Measurements including channel parameters. The RSA3000N models also come standard with Vector Network Analysis. VNA Mode includes S11, S21, and Distance To Fault measurements. The RSA3000 provides complete characterization of RF components, modules, and systems with uncompromised performance and unprecedented value.

Big savings of 31% on the RSA303N Real-Time Spectrum Analyzer. Offer ends 31 December 2024 (US & Canada only)

RSA3000E Datasheet & SpecsRSA3000 Datasheet & Specs Compare Rigol

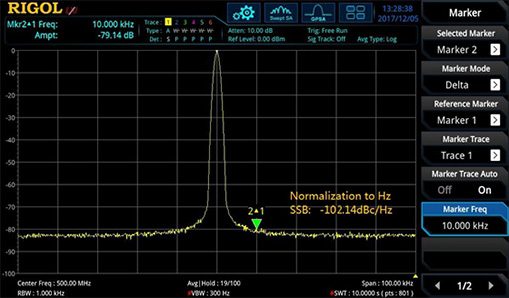

Product Feature Customer Benefit

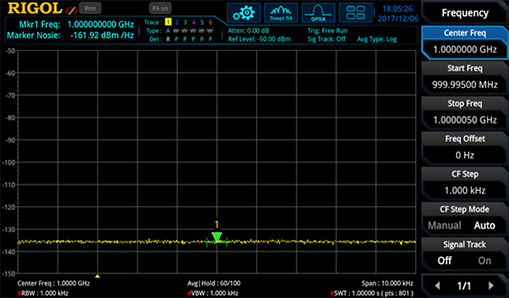

  DANL as low as -161 dBm with optional preamp View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.   Using the optional PreAmplifier the RSA3000 enables engineers to accurately view signals down to a noise floor of -161 dBm. In addition to locating and isolating lower power signals across the spectrum, this makes it possible to more precisely characterize all of the critical RF components within the transceiver design including attenuators, filters, mixers, and antennas.

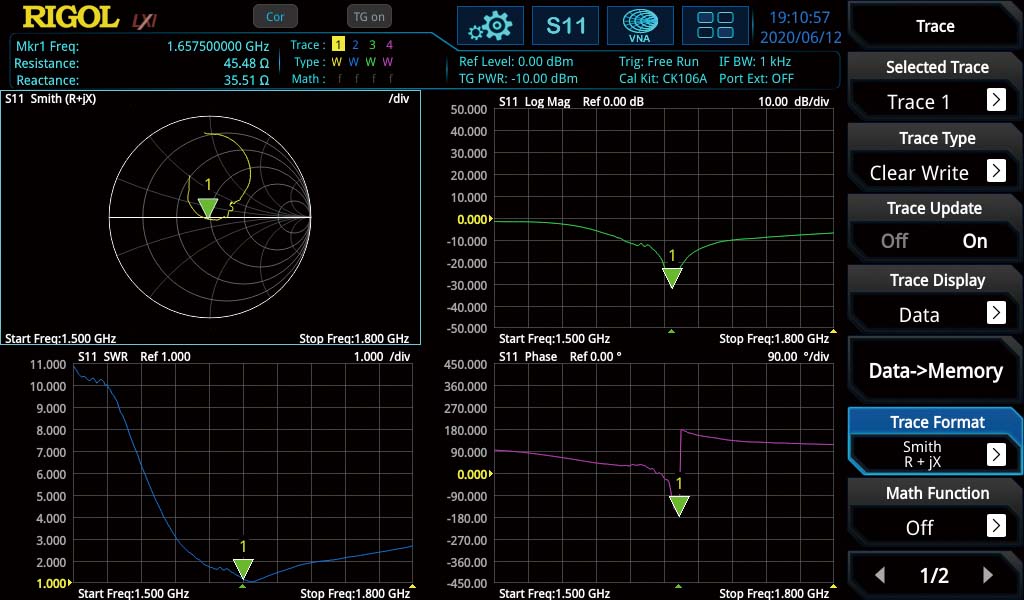

  Vector Network Analysis Adds S11, S21, and DTF measurement capabilities to the suite of RF tests with VNA mode included on the RSA3000N models
Adds S11, S21, and DTF measurement capabilities to the suite of RF tests with VNA mode included on the RSA3000N models

Complete RF analysis requires complex debugging steps including Vector Network Analysis. Use the new RSA3000N models to conduct S Parameter calculations for S11 and S21 as well as Distance To Fault measurements. Analyze group delay, smith, polar, VSWR, and more characteristics with the included VNA functions. For best accuracy get a VNA Calibration Kit, but no other additional hardware is required.
  1 ms full span sweep Utilize the fast 1 millisecond full span sweep to quickly identify signals of interest.
Utilize the fast 1 millisecond full span sweep to quickly identify signals of interest.   Quickly evaluating a broad spectrum for signals of interest and possible signs of interference or unwanted transmissions can be time consuming as many of these signals are moving to shorter and shorter durations. The RSA3000 makes a full span sweep in just 1 ms making it possible to capture many of these signals on the first pass and quickly get a more comprehensive understanding of the local transmissions before moving to real-time for additional analysis.
  Up to 40 MHz of Real-Time BW View wider band and hopping signals at one time without additional setup making identifying and analyzing signals of interest faster and easier.
View wider band and hopping signals at one time without additional setup making identifying and analyzing signals of interest faster and easier.   Engineers debugging time is a critical resource in any new design process. RF debugging is already a complicated challenge. THe RSA3000E Series comes standard with 10 MHz or Real-TIme Bandwidth. Expanding the Real-Time bandwidth of the RSA3000 Series Analyzer to 25 or 40 MHz with the RSA3000-B25 or RSA3000-B40 options to make it faster and easier to capture, isolate, and debug wider bandwidth signals with a single setup.
  7.45 µs 100% POI Capture pulsed transmissions as short as 7.45 µs with guaranteed capture and power accuracy.
Capture pulsed transmissions as short as 7.45 µs with guaranteed capture and power accuracy.   Probability of Intercept is an important specification for any serious Real-Time Spectrum Analyzer. It is the only way to know if your power measurements are accurate given a signal’s on time. Many Real-Time analyzers leave this value unspecified or make it dependent on the PC, but the RSA3000’s platform makes it possible to specify a 100% POI as low as 7.45 µs with the 40 MHz RTBW option enabled and to specify how that changes based on real-time span and RBW settings. The RSA3000E models have 10 MHz of RTBW capable of a 9.3 µs 100% POI. Use these specifications to confidently capture and make power measurements of short duration transmissions.
  7 Real-Time Visualization Modes Advanced debugging and analysis with combinations of Normal, Density, Spectrogram, and Power vs Time visualizations.
Advanced debugging and analysis with combinations of Normal, Density, Spectrogram, and Power vs Time visualizations.   The 7 visualization modes of real-time signals using the RSA3000 make it easier to capture, isolate, and analyze RF signals and systems. Power versus Time and Spectrogram views show how the signal changes over time either within a capture or between consecutive captures. Normal and Density show power across the frequency span with either different trace and detector options or with probability of occurrence data. Combining these views and utilizing markers and triggers in different modes makes the RSA3000 a flexible instrument for real-time RF analysis and debugging.

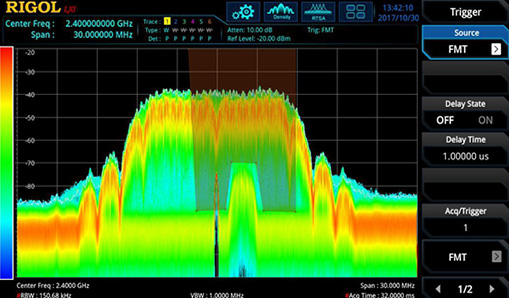

  Powerful triggering capabilities Identify specific signals of interest with frequency mask, power triggers, or use external triggers to time correlate digital signals for additional analysis.
Identify specific signals of interest with frequency mask, power triggers, or use external triggers to time correlate digital signals for additional analysis.   Triggering flexibility is important to real-time debugging of RF signals. Time correlate events with embedded activity to test latencies and power draw effects or find root cause of unwanted transmissions or bugs. The RSA3000 combines powerful frequency mask and power triggers with trigger in and out signaling as well as an IF output that reproduces the real-time bandwidth on a 430 MHz carrier. All of these capabilities enable further time domain analysis of the spectrum with additional instruments already on the engineer’s bench.
  Tracking Generator and VSWR measurements Use the optional tracking generator to test cables, antennas, filters, and active components. VSWR automates standing wave parameter measurements.
Use the optional tracking generator to test cables, antennas, filters, and active components. VSWR automates standing wave parameter measurements.   The RSA3000-TG models come with the factory installed tracking generator and automated VSWR measurements included. The tracking generator provides 40 dB of dynamic range settable from -40 dBm to 0 dBm and can scan from 100 kHz to the maximum frequency of the instrument. Use this flexibility to verify devices under a variety of test conditions. VSWR measurements require a direction couple or bridge. We suggest adding the VB1040 or VB1080 accessories for VSWR measurements.

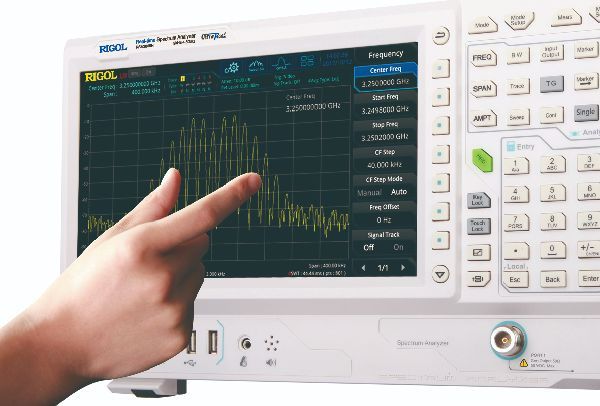

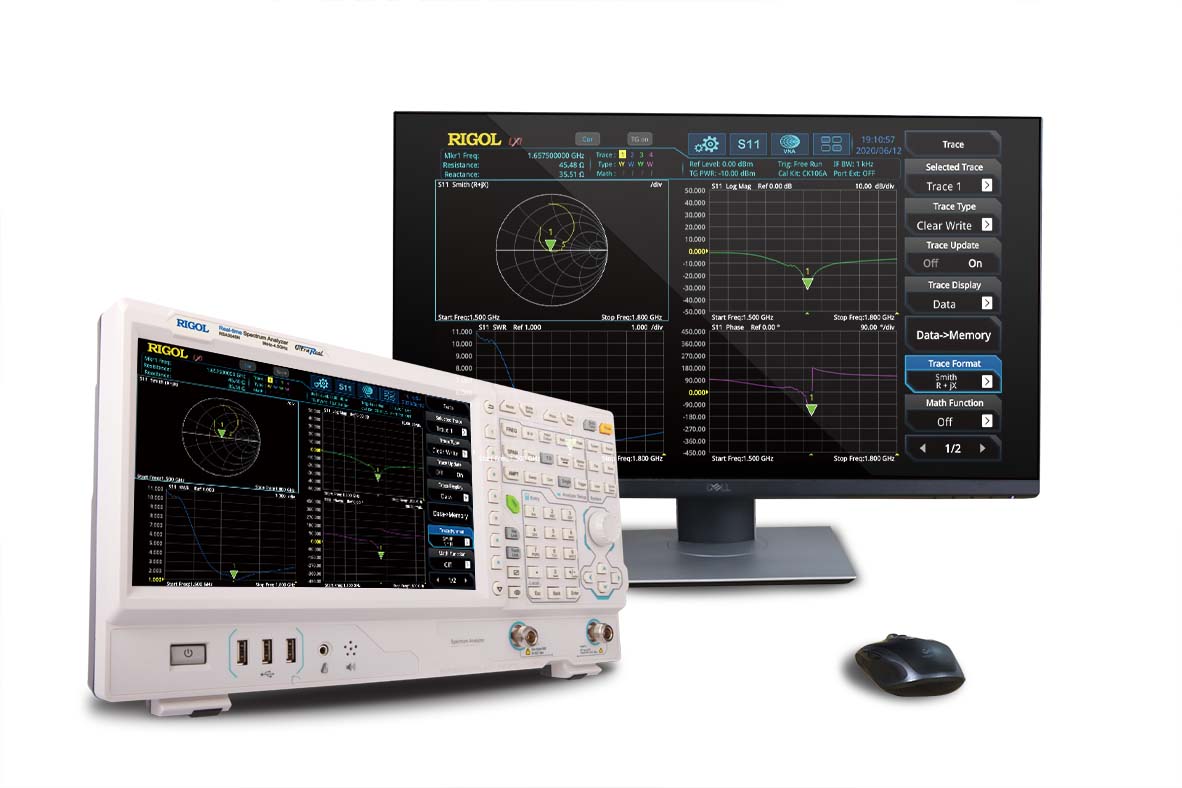

  Flexible usability options Use front panel buttons, touch screen, keyboard/mouse/monitor, and PC based software control in any combination to match the application and customer preference.
Use front panel buttons, touch screen, keyboard/mouse/monitor, and PC based software control in any combination to match the application and customer preference.   The RSA3000 makes it possible to control the instrument completely with a mouse, keyboard, and external HDMI monitor ideal for a bench at your desk. Engineers can also use the traditional knobs and controls. Those who prefer can interact with the touch screen directly. The flexibility to utilize and combine these capabilities makes it intuitive to operate the new instrument efficiently.

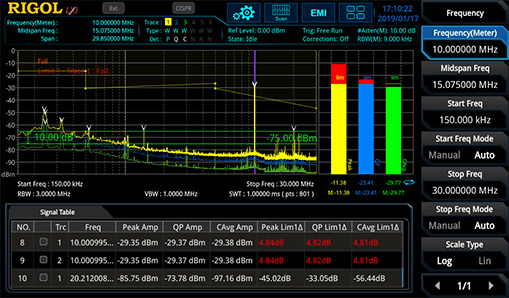

  EMI filters and detectors RSA3000-EMI or RSA3000E-EMI option includes the complete embedded EMI software with limits, scans, and reports as well as the 6 dB filters for EMI bandwidths as well as Quasi Peak detectors.
RSA3000-EMI or RSA3000E-EMI option includes the complete embedded EMI software with limits, scans, and reports as well as the 6 dB filters for EMI bandwidths as well as Quasi Peak detectors.   EMI PreCompliance testing and debugging is an important stage in any electronics design project. Use the EMI filters, bandwidths, and detectors to analyze frequencies of concern before sending the device out for testing. If emission levels are too high, easily switch to real time mode to further characterize the signal and determine root cause. For a limited time, purchase the EMI-Bundle at a special price that includes the RSA3000E-EMI Application software and NFP-3 Near Field Probes. Promotion must be purchased with instrument.

Product Details

RSA3000 with Callouts

New VNA Capability

Learn more about the new Vector Natwork Analysis (VNA) capability on the RSA3000N and RSA5000N models.

Learn More
Whitepapers
EMC Precompliance Testing
Purchasing Info
Buy Now Clearance Stock Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  RSA3000 Datasheet & Specs RSA3000E Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model FrequencyReal-Time BandwidthTracking GeneratorVector Network AnalysisEMI Pre-complianceASK/FSK Demodulation Price
RSA3015E 1.50 GHz10 MHz No No Option Option $1,799
RSA3015E-TG 1.50 GHz10 MHz Yes No Option Option $1,999
RSA3015N 1.50 GHz10 MHz; 40MHz (option) Yes Yes Option No $2,299 In Stock
RSA3015N-OCXO 1.50 GHz10 MHz; 40MHz (option) Yes Yes Option No $3,098 In Stock
RSA3030E 3 GHz10 MHz No No Option Option $3,299
RSA3030E-TG 3 GHz10 MHz Yes No Option Option $3,699 In Stock
RSA3030 3 GHz10 MHz; 40MHz (option) No No Option No $3,999
RSA3030-TG 3 GHz10 MHz; 40MHz (option) Yes No Option No $4,999 In Stock
RSA3030N 3 GHz10 MHz; 40MHz (option) Yes Yes Option No $5,799
$4,001 In Stock
RSA3030N-OCXO 3 GHz10 MHz; 40MHz (option) Yes Yes Option No $6,598 In Stock
RSA3045 4.50 GHz10 MHz; 40MHz (option) No No Option No $4,999
RSA3045-TG 4.50 GHz10 MHz; 40MHz (option) Yes No Option No $6,199
RSA3045N 4.50 GHz10 MHz; 40MHz (option) Yes Yes Option No $6,999 In Stock
RSA3045N-OCXO 4.50 GHz10 MHz; 40MHz (option) Yes Yes Option No $7,798 In Stock
 Compare Product Families
Please scroll to the sides when using small displays

PreAmplifier

RSA3000E-PA
RSA3000E Pre-amplifier



$299

Advanced Measurements

RSA3000E-AMK
RSA3000E Advanced Measurement Kit



$599

Calibration Kit

CK106A

Vector Network Analysis Calibration kit for RSA N models. This kit enables RSA calibration from DC to 6.5 GHz.



$999

Signal Demodulation

RSA3000E-ASK/FSK
ASK & FSK Signal Demodulation Toolkit for the RSA3000E Series



$599

Please scroll to the sides when using small displays
Instrument Cover

USB Cable

Calibration Certificate

Power Cord

Please scroll to the sides when using small displays

PreAmplifier

RSA3000E-PA
RSA3000E Pre-amplifier



$299

Advanced Measurements

RSA3000E-AMK
RSA3000E Advanced Measurement Kit



$599

Signal Demodulation

RSA3000E-ASK/FSK
ASK & FSK Signal Demodulation Toolkit for the RSA3000E Series



$599

Advanced Measurements

RSA3000-AMK
RSA3000 Advanced Measurement Kit



$599

Real Time BW

RSA3000-B25
RSA3000 Real-Time Analysis Bandwidth extend to 25 MHz



$899

Real Time BW

RSA3000-B40
RSA3000 Real-Time Analysis Bandwidth extend to 40 MHz



$1,499

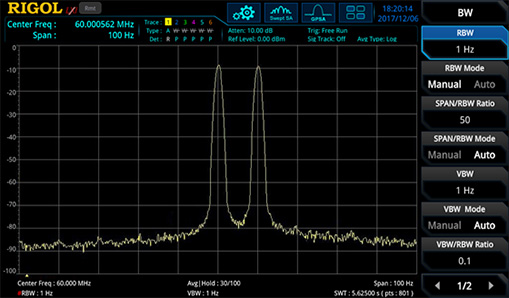

Resolution BW

RSA3000-BW1

RSA3000 - Extend Swept RBW from 1 Hz to 10 MHz



$399

EMI Settings

RSA3000-EMC
RSA3000 EMI Filter and Detector



$499

EMI Software

RSA3000-EMI
EMI Measurement Mode Option for the RSA3000 Series. Includes RSA3000-EMC. Complete Pre-Compliance Software on the RSA3000.



$999

PreAmplifier

RSA3000-PA
RSA3000 Pre-amplifier



$255

EMI Settings

RSA3000E-EMC
EMC Detectors for RSA3000E



$399

EMI Software

RSA3000E-EMI
EMI Measurement Mode Option for the RSA3000E Series. Includes RSA3000E-EMC. Complete Pre-Compliance Software on the RSA3000E.



$899

Please scroll to the sides when using small displays

EMI Software

S1210

EMI PreCompliance Software for RIGOL Spectrum Analyzers. Requires EMI option to be enabled on the instrument. Does NOT work with RSA3000E models. Only supported by RSA3000 models.



$499

Please scroll to the sides when using small displays

Calibration Kit

CK106A

Vector Network Analysis Calibration kit for RSA N models. This kit enables RSA calibration from DC to 6.5 GHz.



$999

High Power Attenuator

ATT03301H
30dB High Power Attenuator, Max Power 100W



$230

N Type Cable

CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable



$199

SMA Cable

CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable



$199

Calibration Kit

CK106E

Vector Network Analysis Calibration kit for RSA N models. This kit enables RSA calibration from DC to 1.5 GHz.



$349

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$499

RF Adaptor Kit

RF Adaptor Kit
RF Cable and adaptor kit



$314

RF Attenuator Kit

RF Attenuator Kit
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)



$524

RF CATV Kit

RF CATV Kit
Kit Includes 50 to 75 Ohm Adaptors (2pcs)



$419

Rack Mount Kit

RM6041
Rack Mounting Kit for the DS/MSO7000, MSO8000, RSA3000, and RSA5000 Series Instruments



$299

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

VSWR Bridge

VB1032
VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included. Requires TG Option. Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: >= 25 dB



$659

VSWR Bridge

VB1040
800 MHz to 4 GHz VSWR Bridge with DSA8-VSWR software for DSA800 Spectrum Analyzers. *SW does NOT work with DSA1000 Family. Requires TG Option.



$923

VSWR Bridge

VB1080
VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. *SW does NOT work with DSA1000 Family. Requires TG Option.



$734

Utility Kit

DSA Utility Kit
DSA Accessories Package including cables, adaptors, and antennas.



$831
