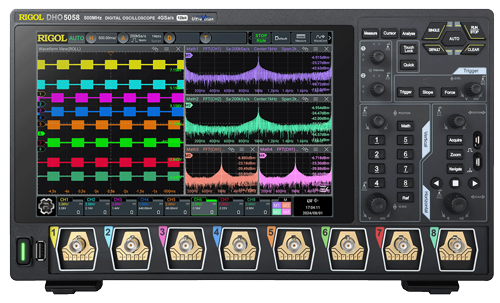

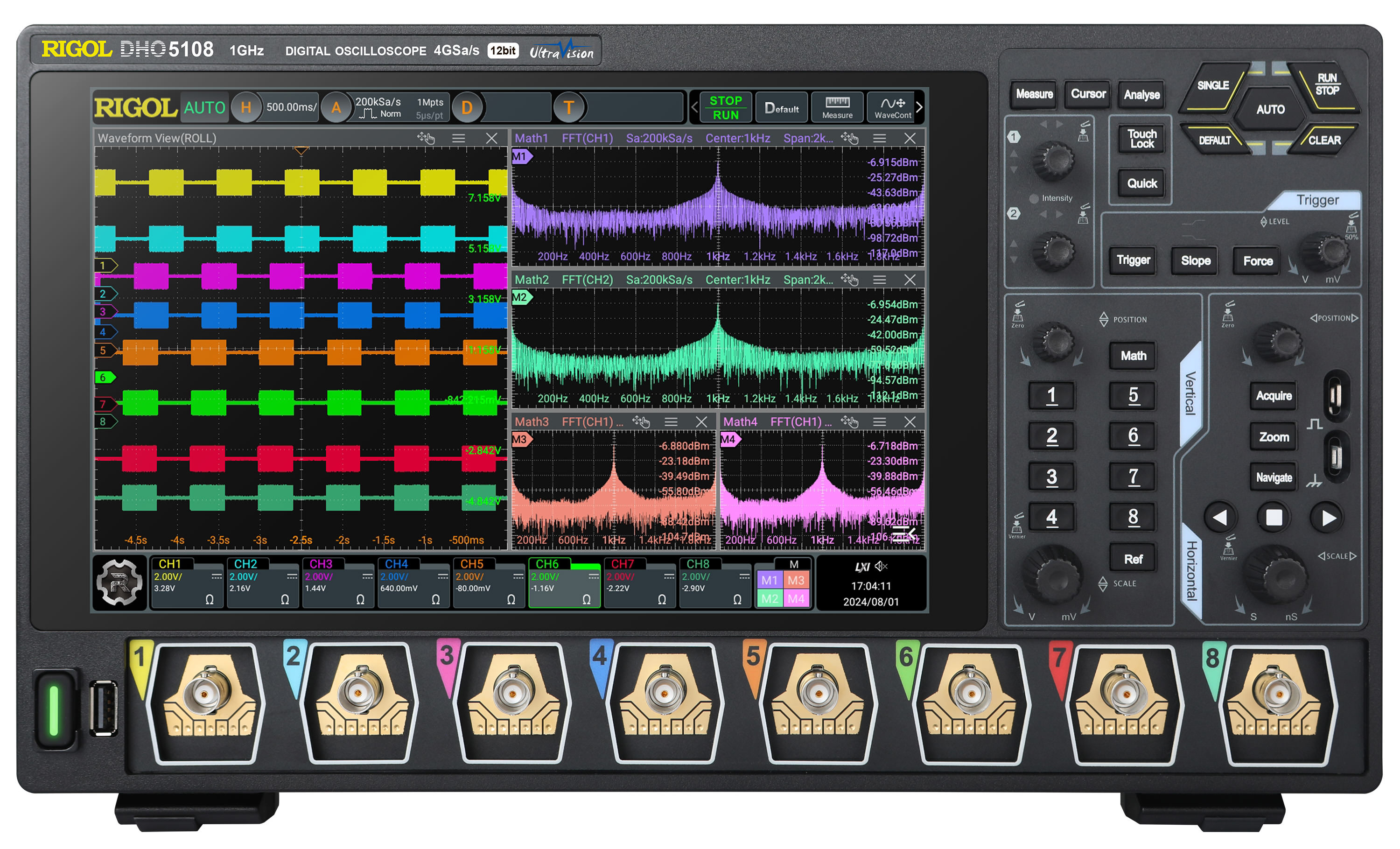

The DHO/MHO5000 series is a family of high-resolution digital oscilloscopes developed to meet the design, debugging, and test requirements of a wide range of applications. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, and excellent noise floor are ready to meet the high-accuracy needs of demanding measurement scenarios. The DHO/MHO5000 series digital oscilloscope has multiple models, include configurations supporting arbitrary function generation, digital signal analysis, Bode plot analysis, and other functions.
Explore the DHO/MHO5000 Series High Resolution Digital Oscilloscopes
4/6/8 Analog Channel

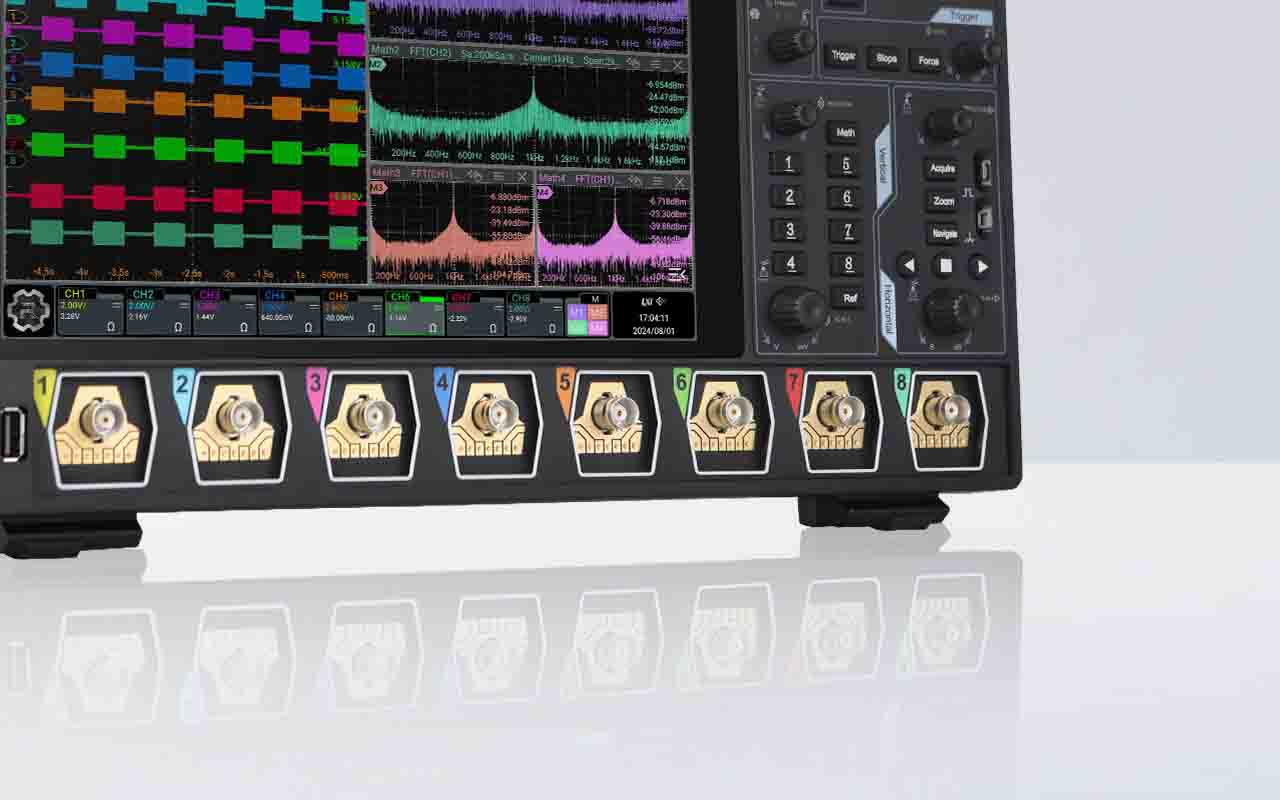

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.
Compact Design

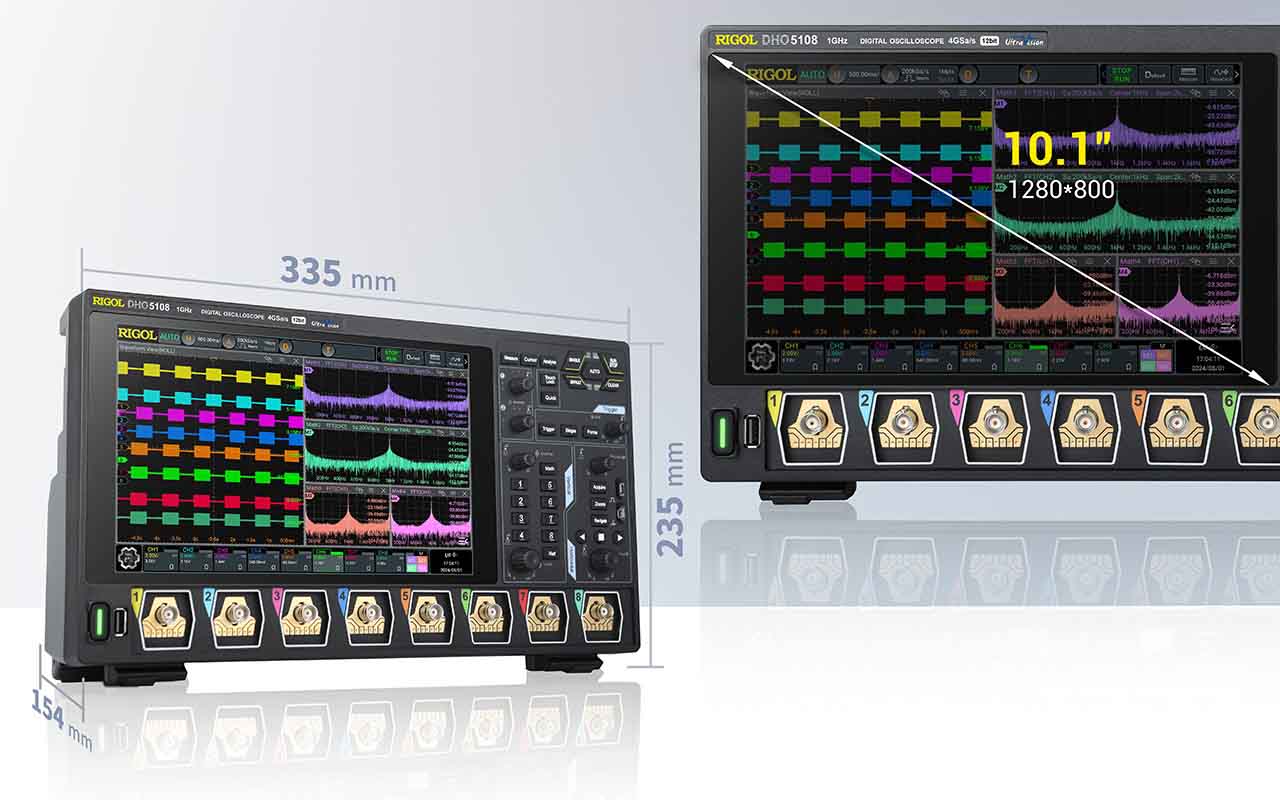

The DHO5000 series features a compact design with dimensions of 335 mm (W) u00d7 235 mm (H) u00d7 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness.
Outstanding Testing Accuracy

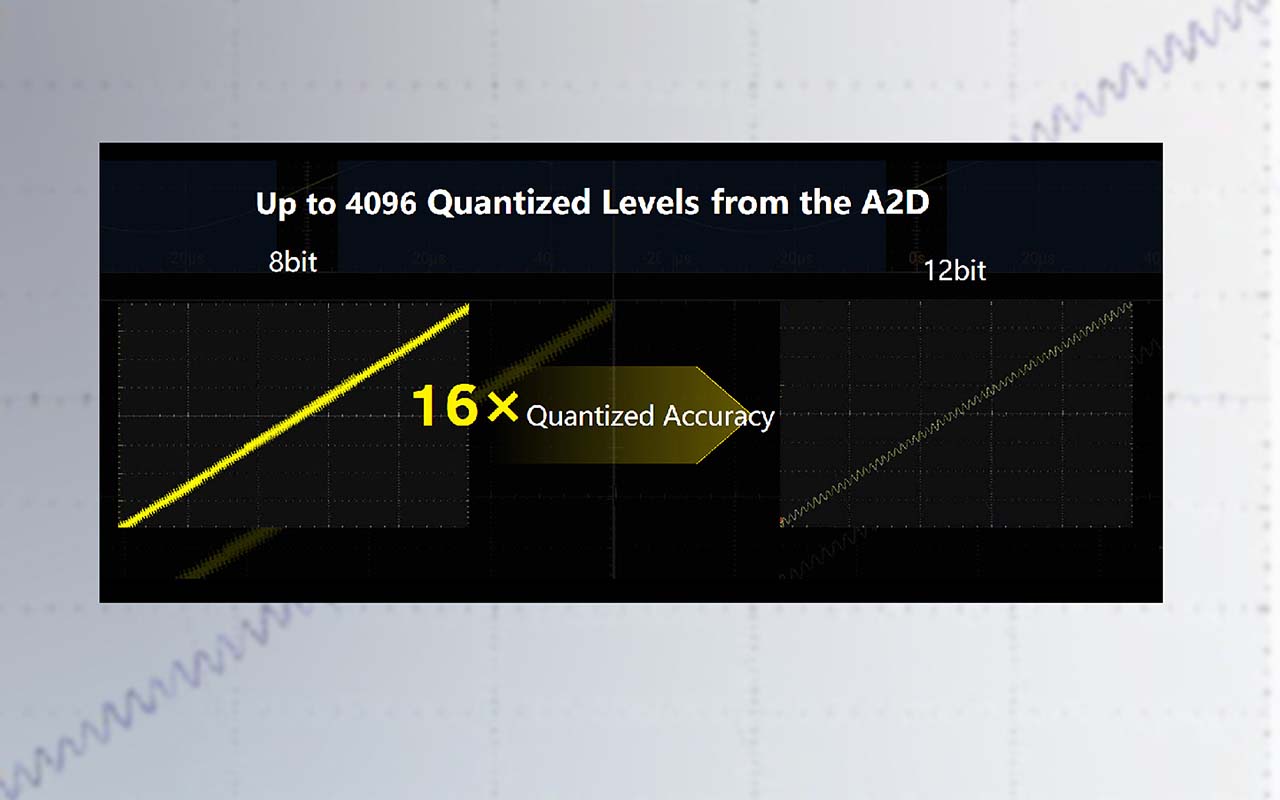

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.
Battery Pack Support

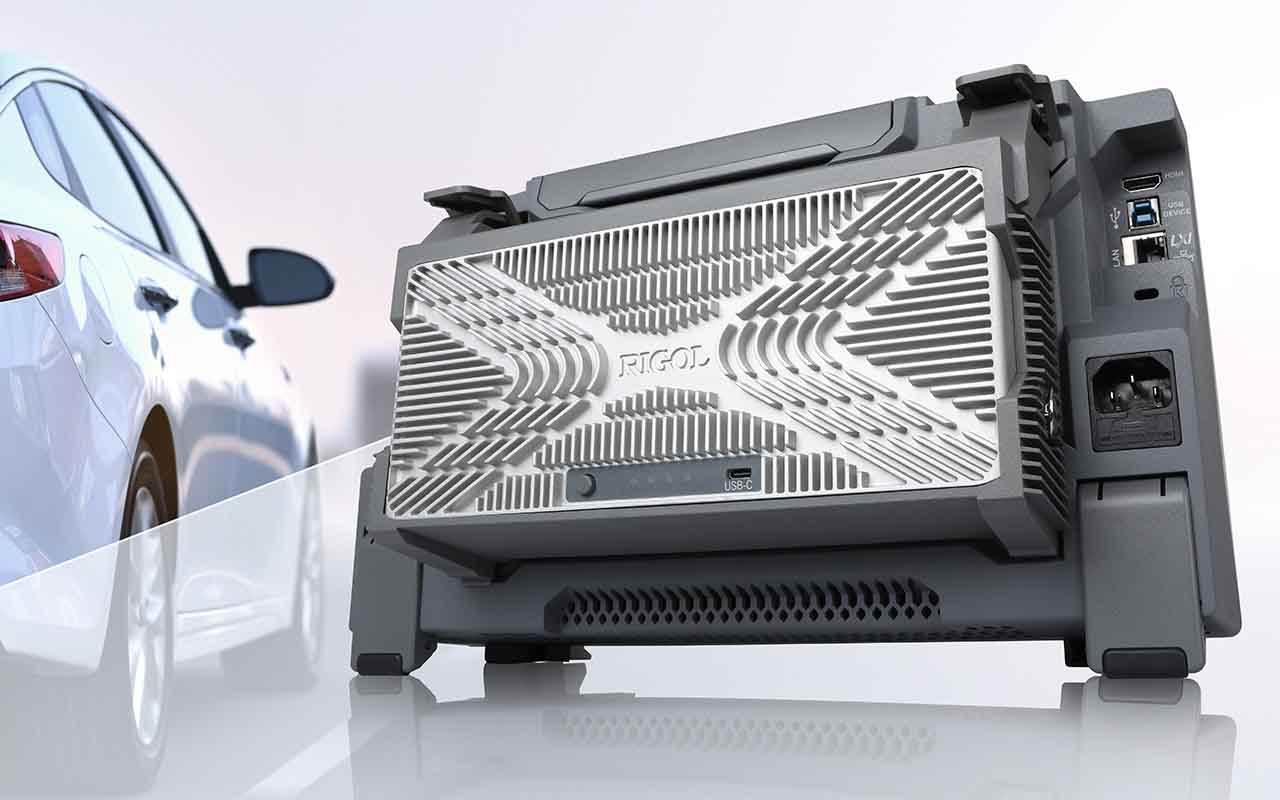

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.
DHO/MHO5000
Model |
Analog Channels |
Digital Channels |
Bandwidth |
Max Sample Rate |
Max Memory Depth |
Waveform Capture Rate |
Price |
|
|---|---|---|---|---|---|---|---|---|
| MHO5054 | 4 | 16 | 500 MHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $5,099 |
|
| MHO5056 | 6 | 16 | 500 MHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $11,899 |
|
| MHO5104 | 4 | 16 | 1 GHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $6,799 |
|
| MHO5106 | 6 | 16 | 1 GHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $15,199 |
|
| DHO5054 | 4 | N/A | 500 MHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $6,799 |
|
| DHO5058 | 8 | N/A | 500 MHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $13,599 |
|
| DHO5104 | 4 | N/A | 1 GHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $8,499 |
|
| DHO5108 | 8 | N/A | 1 GHz | 4 GSa/s | 500 Mpts | 1 Mwfms/s | $16,899 |
|
