DP900
The DP900 Series Power Supplies combine our new touch screen interface with new flexibility and higher speed functions designed for benchtop DC power analysis. The DP932A and DP932U are 3 channel completely isolated benchtop power supplies. Activate the high-speed arb function that allows you to update the power supply output at up to 10 times per second while quickly creating a repeating shape or pattern from the front panel. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. The DP932A comes with all the capabilities enabled. The DP932U has optional resolution, digital IO, and arbitrary speed upgrades. The DP932U also comes with safety banana plugs in place of the binding posts on the DP932A. This combination of flexibility and capability makes the DP900 an important addition to any engineer’s bench.
Functions and features

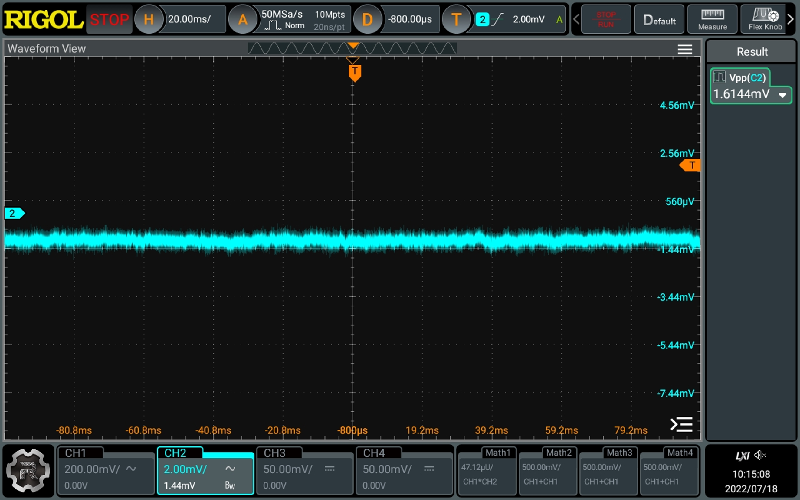

Low Ripple Noise: <350u03bcVrms / 2mVpp
One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350u03bcVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Provides a high-purity signal.

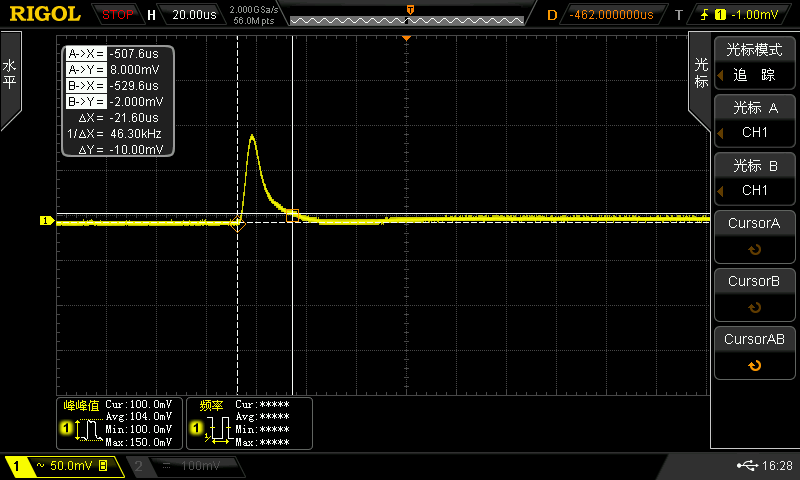

Fast Transient Response Time: < 50us
A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user's needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.

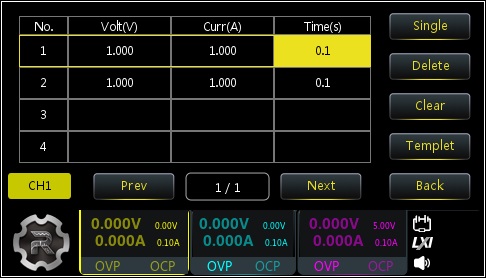

Precise Arbitrary Wave Function: 100ms
The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.

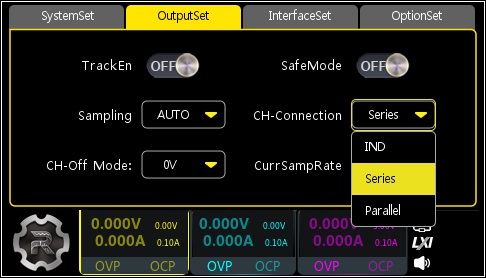

One-Key Series-Parallel, Flexible Testing
Channel 1 and channel 2 of the DP900 have added a one-key series-parallel function. The machine can realize serial 64V or parallel 6A output. Say goodbye to external cumbersome wiring and software switching to help your test efficiency.

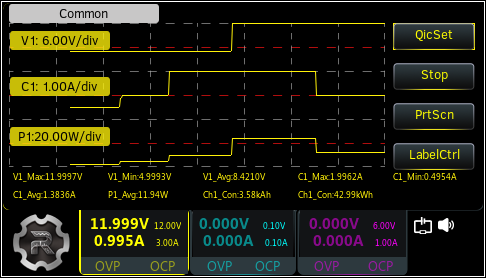

A Variety of Functions, A Wide Range of Applications
DP900 series programmable linear DC power supply also provides various functions such as general analysis, pulse current analysis, monitor, trigger, etc., and is compatible with the standard SCPI command set, which can give you higher-level analysis and control capabilities, not only simple power delivery.

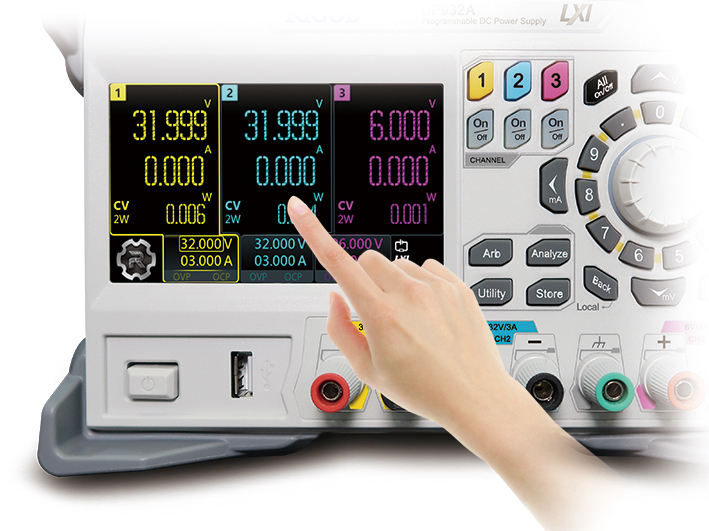

Colorful Appearance, Convenient Operation
The 4.3-inch color touch screen supports two working modes: touch screen and non-touch screen, and smooth touch interaction brings a better experience for your testing.
Benefit Education, Safety Terminal
The front panel of the DP932U model of the DP900 series is equipped with safety terminals without exposed metal, which can protect the user's test safety. Sincere price, reliable performance, and safety guarantee are the best choice for your purchase!
DP900
Model |
Channels |
Total Power |
Max Voltage |
Max Current |
Price |
|
|---|---|---|---|---|---|---|
| DP932U | 3 channel(s) | 210 Watts | 64 Volts | 6 Amps |
$539 $404 |
|
| DP932A | 3 channel(s) | 210 Watts | 64 Volts | 6 Amps |
$659 $494 |
|
| DP932E | 3 channel(s) | 198 Watts | 60 Volts | 6 Amps |
$479 $359 |
|
DP900 Programming Guide
|
|
DP900 Datasheet & Specs
|
| How do I install UltraSigma Compatible software? | You will need to have Ultra Sigma installed first.
Contact Rigol for more information.
Ultra IQ provides modulation waveform editing for the DSG3000 series of RF sources.
Ultra Power provides instrument control and data collection for the Rigol DP series of power supplies.
Ultra Signal Studio is a legacy software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG4000 and DG5000 arbitrary waveform generators.
Ultra Station is a software package that provides arbitrary waveform creation, editing, and download capabilities for the Rigol DG1000Z, DG4000 and DG5000 arbitrary waveform generators.
Ultra Spectrum provides instrument control and spectrum analysis for Rigol DSA1000, 1000A, and 800 series Digital Spectrum Analyzers. |
| User's Guide for UltraSigma Software | UltraSigma is a VISA based communication and shell program that eases communication and remote control of instrumentation.
We have built a short user's guide to familiarize user's with the features of UltraSigma. |
 UltraSigma Instrument Connectivity Driver | Software for Communicating with instruments over VISA. UltraSigma is also a container and gateway for software such as Ultra Signal Studio, Ultra Spectrum, Ultra Power, and more. |
| C#.NET basic instrument communication example | Here is a short example on using National Instrument VISA and C#.NET to communicate with an instrument. |
| DP1116A LabVIEW 2010 Demo Code IV Sweep | This demo code uses LabVIEW 2010 and VISA to program a Rigol DP1116A power supply to sweep either voltage or current and measure current or voltage.
This can be used to characterize many different devices such as LED's, Diodes, Transistors, and resistors. |
| How do I install UltraSigma? | UltraSigma is a software installation that provides basic communications between a computer and an instrument using VISA.
It is also used to contain instrument specific software like UltraSpectrum for use with Rigol Spectrum Analyzers, Ultra Signal Studio for Arbitrary Waveform Generators, and Ultra Power for Power Supplies. |
| Rigol Software Installation and Usage guide | An overview of the installation and usage of the Ultra Family of software products from RIGOL |
