DP2000
The DP2000 Series Power Supplies combine new high speed and high accuracy technology to provide a flexible test and analysis instrument for all of your DC power applications. The DP2031 is a 3 channel power supply with new capabilities that expand its value. First, the DP2031 comes with a low current measurement range that makes microamp measurements possible with 28 microamp accuracy and 1 microamp resolution. Combine that with the high-speed arb function that allows you to update the power supply output at up to 1000 times per second and you can quickly emulate battery configuration tests for all of your IoT and portable electronics. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. This combination of flexibility and capability makes the DP2000 an important addition to any engineer’s bench.
Functions and Features
Low ripple noise: <350uVrms / 2mVpp

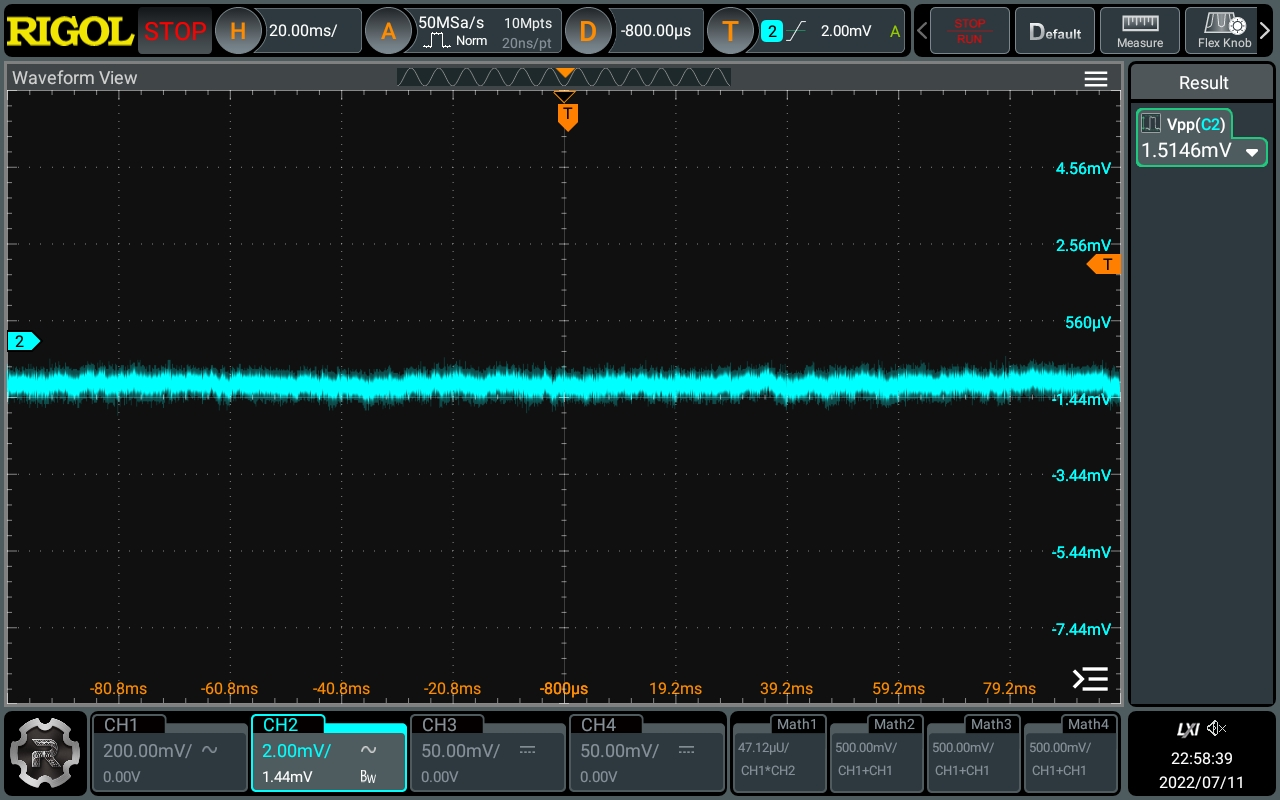

One of the major advantages of linear DC power supply is the output purity. In the bandwidth of 20Hz-20MHz, DP2000 ripple and noise index is less than 350u03bcVrms or 2 mVpp, ultra-low noise design, purer output, minimizing any interference to the load and providing high purity signal to your equipment.
Fast transient response time: < 50us

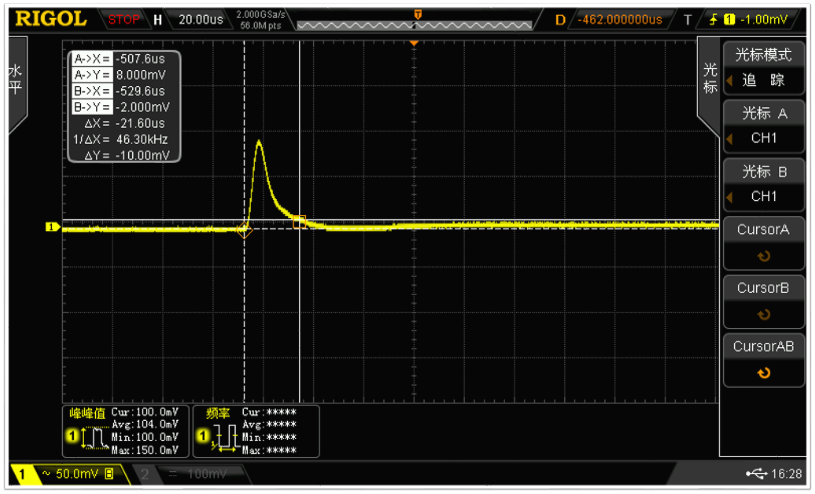

With a transient response capability of less than 50us, the DP2000 is able to cope with changing loads and protect your tests.
High Speed Arb Mode

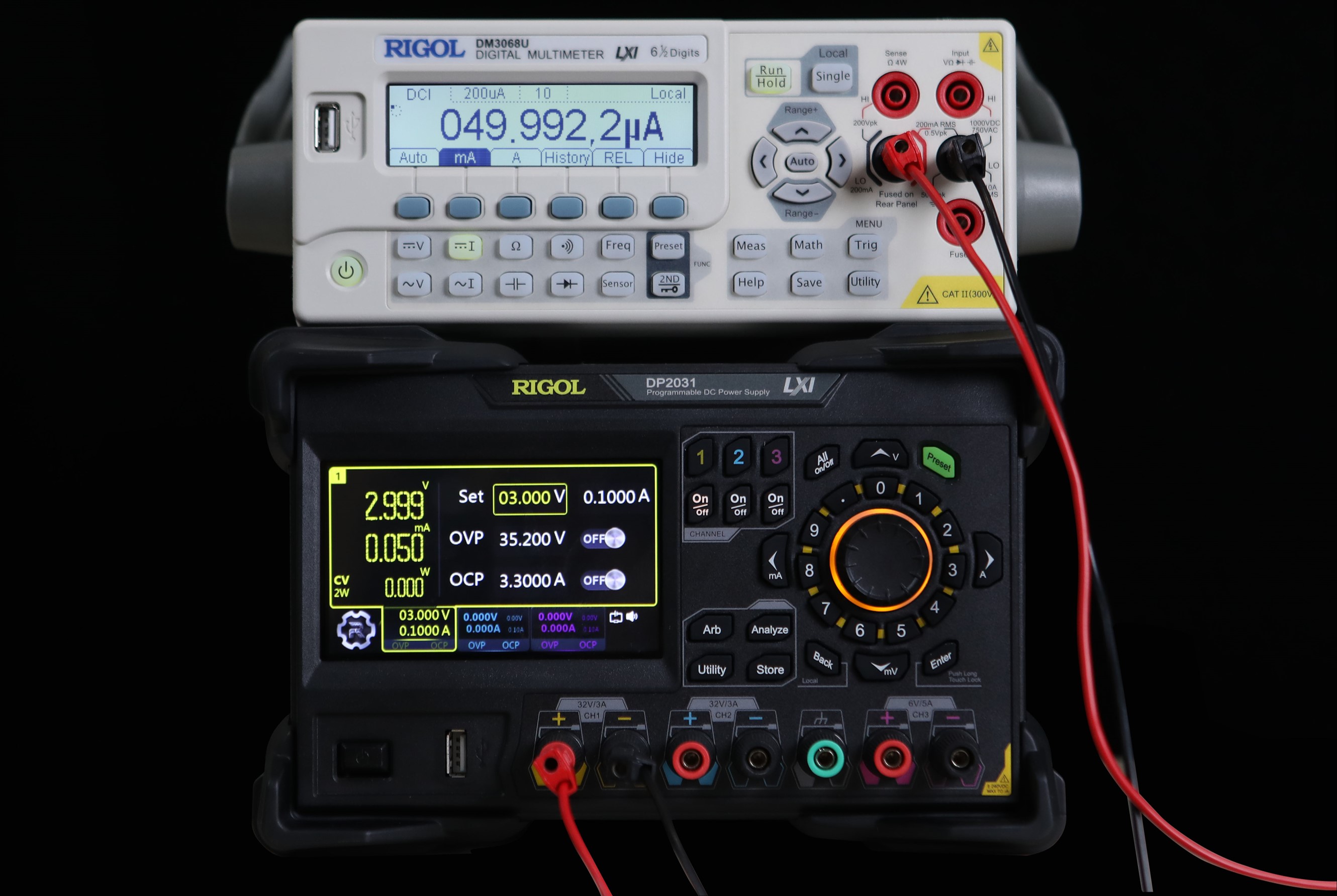

Emulate dynamic power signals for reliability and robustness testing Emulate dynamic power signals for reliability and robustness testing With high-speed arbitrary mode, engineers can create a function or waveform of up to 512 points with a minimum dwell time as low as 1 millisecond. Create sine waves, pulses, ramps, or custom shapes to output on the power supply channel in either voltage or current. Set up the waveform to repeat or trigger using the digital IO or bus communication. Combine high speed arb mode and sampling for complete analysis of a test deviceu2019s power performance.
Automatic Series & Parallel Connections

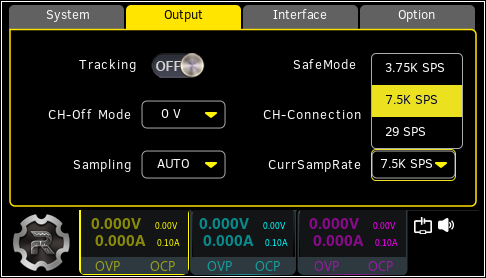

Simplified wiring and connections for fast and easy setup Simplified wiring and connections for fast and easy setup Channels 1 & 2 can be internally connected via the utility menu either in parallel or series. This allows engineers to get voltage or current from both channels with only a connection to the channel 1 terminals. With all 3 fully isolated channels it is easy to configure the instrument for your application.
Millisecond editing, meticulous output

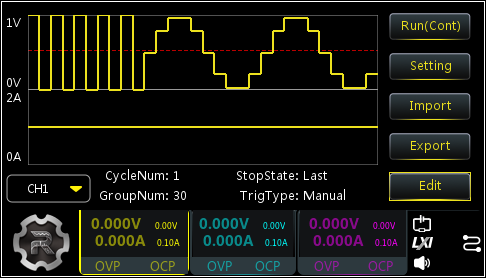

The new power supply has achieved a thousand-fold improvement in the standard arbitrary wave function. The waveform dwell time is as short as 1ms. It has multiple built-in output templates covering different ranges of voltage, current, dwell time, number of repetitions, and number of data points. You can freely edit the output sequence to achieve a more detailed arbitrary wave.
DP2000
Model |
Channels |
Total Power |
Max Voltage |
Max Current |
Price |
|
|---|---|---|---|---|---|---|
| DP2031 | 3 channel(s) | 222 Watts | 64 Volts | 10 Amps | $1,199 |
|
DP2000 Programming Guide
|
|
DP2000 Datasheet & Specs
|
