DG4000 Series   |

Arbitrary Waveform Generators

DG4000

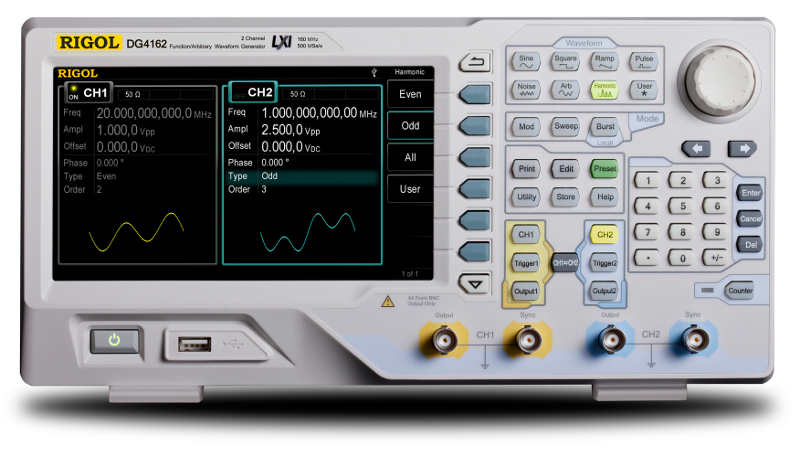

The DG4000 Series waveform generators are utilized in a wide range of applications because of the many functions combined into one instrument. With capabilities including Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source, and Counter the DG4000 series can handle a broad array of signal emulation applications from near DC up to 60 or even 200 MHz depending on model and function. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology which delivers stable, precise, low distortion signals. The sleek, upright design features a high resolution 7" display screen, while the user-friendly interface design and panel layout improves efficiency.
SpecificationsDG4000 Datasheet Compare Rigol
Product Feature Customer Benefit
  Up to 500 MSa/sec Sample Rate Provides fine resolution and detail in high speed signals
Provides fine resolution and detail in high speed signals   A waveform generator's sample rate indicates how often the DAC driving the output changes value. The more often the changes the more accurately the generator will mimic high speed and complex signals.
  7 inch WVGA large format display Always know what signals are being generated with the intuitive and informative extra large display
Always know what signals are being generated with the intuitive and informative extra large display   The DG4000 Series large format display clearly indicates the function output on each channel with a combination of text and graphics. Furthermore, the DG4000 can do on screen charting of results from the counter as well as show complex sweeping and modulation functions. Find the error quickly and easily with one of the most informative and full featured generators available.
  Up to 130 built-in waveforms Quickly and easily access more predefined signals without creating them from scratch
Quickly and easily access more predefined signals without creating them from scratch   RIGOL's waveform generators are known for including many popular, customized wave types within the instrument limiting waveform creation to truly arbitrary applications. The DG4000 continues this trend by including over 130 different signal shapes all accessible from the front panel selection menu.
  Harmonic waveform generation Simplify the creation of waves with multiple frequency components. Instead of combining waveforms in a software environment to load into a generator, create waves with multiple harmonics, power levels, and frequencies natively.
Simplify the creation of waves with multiple frequency components. Instead of combining waveforms in a software environment to load into a generator, create waves with multiple harmonics, power levels, and frequencies natively.   The DG4000 Series waveform generators combine up to 16 harmonics of the fundamental output frequency. Each harmonic may have an independently set phase and power level enabling almost unlimited options for a complete wave combination.

Product View

DG4000
Purchasing Info
Buy Now Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  DG4000 Datasheet  DG4000 Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model Output Frequency- SINEOutput Frequency- SquareChannelsArbitrary Waveform Length Price
DG4062 60 MHz25 MHz2 channels16 K $1,059 In Stock
DG4102 100 MHz40 MHz2 channels16 K $1,129
DG4162 160 MHz50 MHz2 channels16 K $1,439
DG4202 200 MHz60 MHz2 channels16 K $2,069 In Stock
 Compare Product Families

Specifications:

 DG4000 Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DG4000 Series Latest Firmware

Drivers

 DG4000 IVI Driver

Software

 Ultra Station Software (New) Ultra Station Software (old) UltraSigma Instrument Connectivity Driver DG4000 DG1000Z DG5000 LabVIEW 2011 General Example PA1011 Control Software Ultra Station (old) - Advanced Activation Instructions
Please scroll to the sides when using small displays

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.



$155

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$451

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (1 meter length)
USB Cable

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Arbitrary Wave Generation Software

Ultra Station-adv
Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license.



$115

Please scroll to the sides when using small displays

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.



$155

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$451

Rack Mount Kit

RM-DS1000Z/DG4000
Rack Mounting Kit for a DS1000Z Series Oscilloscope or DG4000 Series generator. May be different than image. Rack kits are different for each instrument.



$159

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346
