DG5000 Series   |  Arbitrary Waveform Generators

DG5000
The DG5000 Series is a waveform generator combining multiple capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). The DG5000 comes in single and true, independent, dual-channel models that provide adjustable phase and ground levels between the two channels. These instruments utilize Direct Digital Synthesizer (DDS) technology providing stable, precise, low distortion signals. Control signals from the user-friendly interface and layout or program the instrument remotely over USB or LXI to improve efficiency.

Have you seen the DG5000 Pro Series Generators? Higher resolution. Higher performance. Lower price.
SpecificationsDG5000 Datasheet Compare Rigol
Product Feature Customer Benefit
  Super high speed function generator Reach your complete frequency range with waveforms up to 350MHz
Reach your complete frequency range with waveforms up to 350MHz   The DG5000 Series generator is our fastest function generator. Create sine waves to 350 MHz, square waves to 120 MHz, Pulses to 50 MHz, or 250 MHz of noise bandwidth. Add high speed sweep, burst, or modulations as well.
  Up to 1 GSa/sec Sample Rate Provides fine resolution and detail in high speed signals
Provides fine resolution and detail in high speed signals   A waveform generator's sample rate indicates how often the DAC driving the output changes value. The more often the changes the more accurately the generator will mimic high speed and complex signals.
  Deep memory 128 Million point arbitrary waveforms Create high speed waveforms with more detail than ever. These arbitrary waves are some of the longest available in the industry.
Create high speed waveforms with more detail than ever. These arbitrary waves are some of the longest available in the industry.   The DG5000 Series generator is our deepest memory arbitrary generator. Using the UltraStation software, users can create 128 Million point entirely custom waveforms. This capability is vital to applications with long time constants or emulation repitition like radar and sonar where how the data changes over milliseconds is critical.

Product View

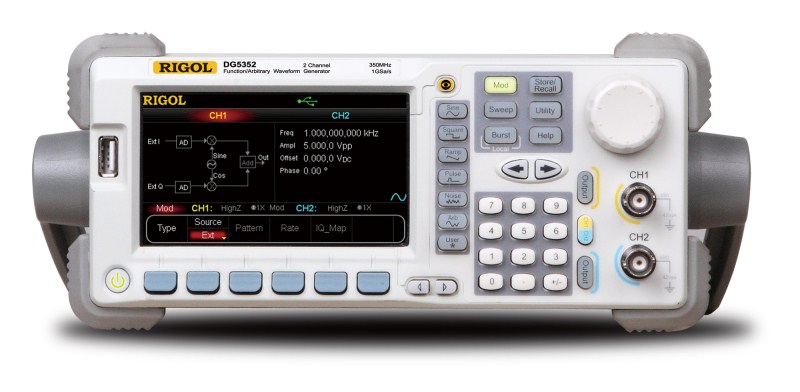

DG5000
Whitepapers
Synchronizing Multiple DG5000s
Purchasing Info
Buy Now Clearance Stock Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  DG5000 Datasheet  DG5000 Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model Output Frequency- SINEOutput Frequency- SquareChannelsArbitrary Waveform Length Price
DG5071 70 MHz70 MHz1 channels128 M $2,058
DG5072 70 MHz70 MHz2 channels128 M $3,024
DG5101 100 MHz100 MHz1 channels128 M $4,232
DG5102 100 MHz100 MHz2 channels128 M $5,072
DG5251 250 MHz120 MHz1 channels128 M $7,245
DG5252 250 MHz120 MHz2 channels128 M $8,852 In Stock
DG5351 350 MHz120 MHz1 channels128 M $10,626
DG5352 350 MHz120 MHz2 channels128 M $14,186
 Compare Product Families

Specifications:

 DG5000 Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DG5000 Series Latest Firmware

Drivers

 DG5000 IVI Driver

Software

 Ultra Station Software (New) Ultra Station Software (old) UltraSigma Instrument Connectivity Driver DG4000 DG1000Z DG5000 LabVIEW 2011 General Example PA1011 Control Software Ultra Station (old) - Advanced Activation Instructions
Please scroll to the sides when using small displays

Frequency Hopping

FH-DG5000
Frequency hopping software license option for DG5000 series AWG



$2,287

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$451

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (1 meter length)
USB Cable

Please scroll to the sides when using small displays

Frequency Hopping

FH-DG5000
Frequency hopping software license option for DG5000 series AWG



$2,287

Please scroll to the sides when using small displays

Arbitrary Wave Generation Software

Ultra Station-adv
Full advanced version of UltraStation wave generation software for DG1000Z, DG4000, DG5000 Series generators as well as DS1000Z and DS2000A "-S" embedded generators. This is a software upgrade license.



$115

Please scroll to the sides when using small displays

Power Amplifier

PA1011
10W POWER AMPLIFIER FOR GENERATORS. Requires generator to function.



$451

Rack Mount Kit

RM-DG5000
Rack Mounting Kit for a DG5000 Series Generator. May be different than image. Rack kits are different for each instrument.



$231
