4000 Series   |  Mixed Signal Oscilloscopes

4000

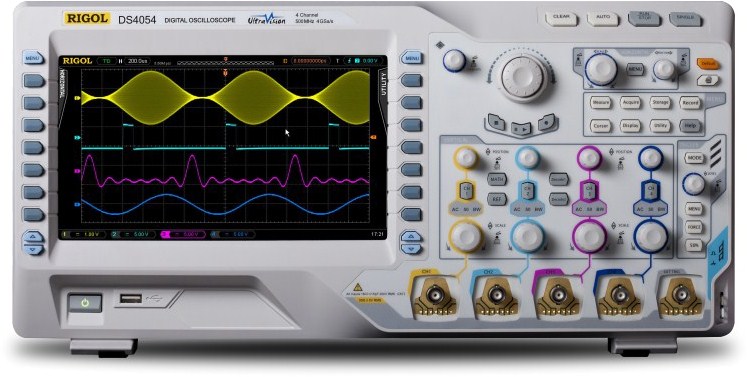

The 4000 series digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s, 2 or 4 analog channels, and 16 digital logic channels, the 4000 is ideal for a wide variety of engineers working in communications, industrial electronics, R&D and educational fields.
4000 Series Specifications4000 Series Datasheet Compare Rigol
Product Feature Customer Benefit
  Up to 4GSa/s Max Sample Rate Provides fine resolution and detail in high speed signals
Provides fine resolution and detail in high speed signals
Never miss a transition or glitch with up to 4 GSa/sec sampling. Sample Rate describes the frequency at which the instrument samples the data. Higher the sample rate provides better resolution and finer detail of the signal being captured.
  140Mpts Standard Record Length Long acquisitions at high sample rates help debug elusive problems in complex digital streams
Long acquisitions at high sample rates help debug elusive problems in complex digital streams
Record length describes the number of points that can be captured and stored. Generally speaking larger record length provides for longer captures.
The time duration is directly related to the sample rate with higher sample rates consuming more memory resulting in shorter time capture
  Up to 110,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increases observations of random and sporadic events
Minimize scope “dead time” between trigger events and increases observations of random and sporadic events
Waveform Capture Rate speaks to how many triggered events can be captured and that data integrated into the displayed waveform per second. The Waveform Capture Rate times the width of the display in time equates to the "on-time" of the instrument. The rest of the time is "dead-time" when the instrument could miss a signal or event.
  16 Digital Channels (MSO Models) Time correlated views between analog and digital channel speeds debug of embedded designs
Time correlated views between analog and digital channel speeds debug of embedded designs   Mixed Signal Oscilloscopes (MSO’s) allow users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.
  Serial Triggering and Analysis Options Speeds analysis and debug of your I2C, RS232 and SPI designs
Speeds analysis and debug of your I2C, RS232 and SPI designs
Serial Trigger allows the user to trigger the oscilloscope based on a specific pattern or word found in a serial data stream. Serial Decode allows the user to convert the waveform into a decoded readable format which allows for quick determination of problems on a serial bus.

Product Details

4000 with Callouts
Whitepapers
Debug & Analysis of IoT Power RequirementsDS6000 Video Signal and Glitch Demonstration Note
Purchasing Info
Buy Now Clearance Stock Find a Distributor
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call (877) 474-4651

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  DS4000E Data Sheet 4000 Series Datasheet  DS4000E Specs 4000 Series Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsReal-time Sample RateMax Memory DepthWaveform Capture Rate Price
DS4014E 100 MHz4 2 GSa/s140 Mpts60,000 wfms/s OBSOLETE Recommended: DS7014
DS4012 100 MHz2 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7014
DS4014 100 MHz4 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5104
DS4024E 200 MHz4 2 GSa/s140 Mpts60,000 wfms/s OBSOLETE Recommended: DS7024
DS4022 200 MHz2 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7024
DS4024 200 MHz4 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7024
MSO4012 100 MHz2 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5102
MSO4014 100 MHz4 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5104
MSO4022 200 MHz2 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5204
MSO4024 200 MHz4 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO7024
DS4032 350 MHz2 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7034
DS4034 350 MHz4 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5354
DS4052 500 MHz2 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7054
MSO4032 350 MHz2 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5354
DS4054 500 MHz4 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: DS7054
MSO4034 350 MHz4 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO5354
MSO4052 500 MHz2 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO7054
MSO4054 500 MHz4 16 4 GSa/s140 Mpts110,000 wfms/s OBSOLETE Recommended: MSO7054
 Compare Product Families

Specifications:

 DS4000E Specs 4000 Series Specs
Please scroll to the sides when using small displays

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

Please scroll to the sides when using small displays
FacePlate

Instrument Display Cover
Passive Probes - One per channel

RP3500A 500 MHz Passive Probes for all models except DS4014E and DS4024E which come with PVP2350 350 MHz Passive Probes
RPL2316

Logic Probe for MSO2000A, MSO4000, and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips
Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Bandwidth Upgrade

BW3T5-MSO/DS4000
Bandwidth upgrade form 350MHz to 500MHz for MSO/DS403x



$2,830

Bandwidth Upgrade

BW2T3-MSO/DS4000
Bandwidth upgrade form 200MHz to 350MHz for MSO/DS402x



$3,234

Bandwidth Upgrade

BW2T5-MSO/DS4000
Bandwidth upgrade form 200MHz to 500MHz for MSO/DS402x



$6,064

Please scroll to the sides when using small displays

Power Analysis Software

UPA-DS
Power Analysis Software for Oscilloscopes



$880

Please scroll to the sides when using small displays

Active Probe

RP7080

Active, differential, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,099

1 to 5 BNC Cable set for scope calibration

CK-DS6000

1 to 5 BNC Cable set for scope calibration



$49

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$231

Passive Probe

PVP3150
10x 1x selectable passive probe with 10x bandwidth of 150 MHz and 1x bandwidth of 20 MHz



$35

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$1,791

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$473

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$683

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$999

Passive Probe

RP5600A
600 MHz Bandwidth 10:1 Passive Probe Kit (these ship standard with DS6000 Series Oscilloscopes)



$457

Passive Probe

RP6150A
1.5GHz Passive Probe. Probe may be different than image indicates.



$342

Active Probe

RP7080S

Active single-ended, 800 MHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$1,049

Active Probe

RP7150

1.5 GHz Bandwidth Active Probe Kit option for 6000, 7000, and 8000 Series Oscilloscopes



$4,736

Active Probe

RP7150S

Active single-ended,1.5GHz probe for 6000, 7000, and 8000 Series Oscilloscopes



$2,520

Power Analysis Jig

RPA246

Power analysis phase difference correction jig



$59

Digital Probe Kit

RPL2316
Logic Probe for MSO4000 and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips



$399

Tek Probe Adaptor

T2R1000
Active probe adaptor for connecting TekProbe-BNC probes to a DS6000 or MSO/DS4000



$314

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$346

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$19

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$20

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$799

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$999

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$1,590

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$1,560

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$867

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$3,408

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$4,909

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$4,332

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$5,490

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$524

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,038

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$788

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$243

IoT Design Challenges Seminar
Register to check out our new IoT Webinar Series.
Topics Include:
  • Debugging Serial Communication
  • RF Sensor Integration and Demodulation
  • Characterizing Power Requirements
Register Here
